White canes

Orientation canes

for spatial orientation and independent mobility of blind people

Cane designation					Length in cm
Folding	5 sections	Aluminium	Or F5 A	the cloth bag is a standard feature	100–150 (by 5 cm)
Folding	5 sections	Composite	Or F5 C	the cloth bag is a standard feature	100–150 (by 5 cm)
Folding	5 sections	Injected	Or F5 I	the cloth bag is a standard feature	100–150 (by 5 cm)
Telescopic	2 sections	Aluminium	Or T2 A		110, 125, 140 adjustable to the value given
Telescopic	3 sections	Aluminium	Or T3 A		110, 125, 140, 155 adjustable to the value given
Combined	4 sections	Aluminium	Or C4 A		105, 120, 135, 150 adjustable to the value given
Combined	5 sections	Composite + Aluminium	Or C5 C/A	the cloth bag is a standard feature	120, 135 adjustable to the value given
Combined	6 sections	Composite + Aluminium	Or C6 C/A	the cloth bag is a standard feature	145, 160 adjustable to the value given

Signalling canes

To signal the presence of a weak-sighted person or as a supplementary cane for blind persons

Cane designation					Length in cm
Folding	7 sections	Aluminium	Si F7 A	the cloth bag is a standard feature	90, 100, 110
Telescopic	7 sections	Composite	Si T7 C		~ 115 this telescopic cane is not adjustable

Support canes

for people with combined vision and mobility impairment

Cane designation					Length in cm
Rigid	1 section	Aluminium	Su R1 A		76–100 (by 1 cm)
Folding	4 sections	Aluminium	Su F4 A		76–100 (by 1 cm)
Telescopic	2 sections	Aluminium	Su T2 A	a variant with a handle to support the forearm is also possible	79–104 (step 2.5 cm)
Combined	5 sections	Aluminium	Su C5 A		83–95 (step 2 cm)

Design

Rigid cane

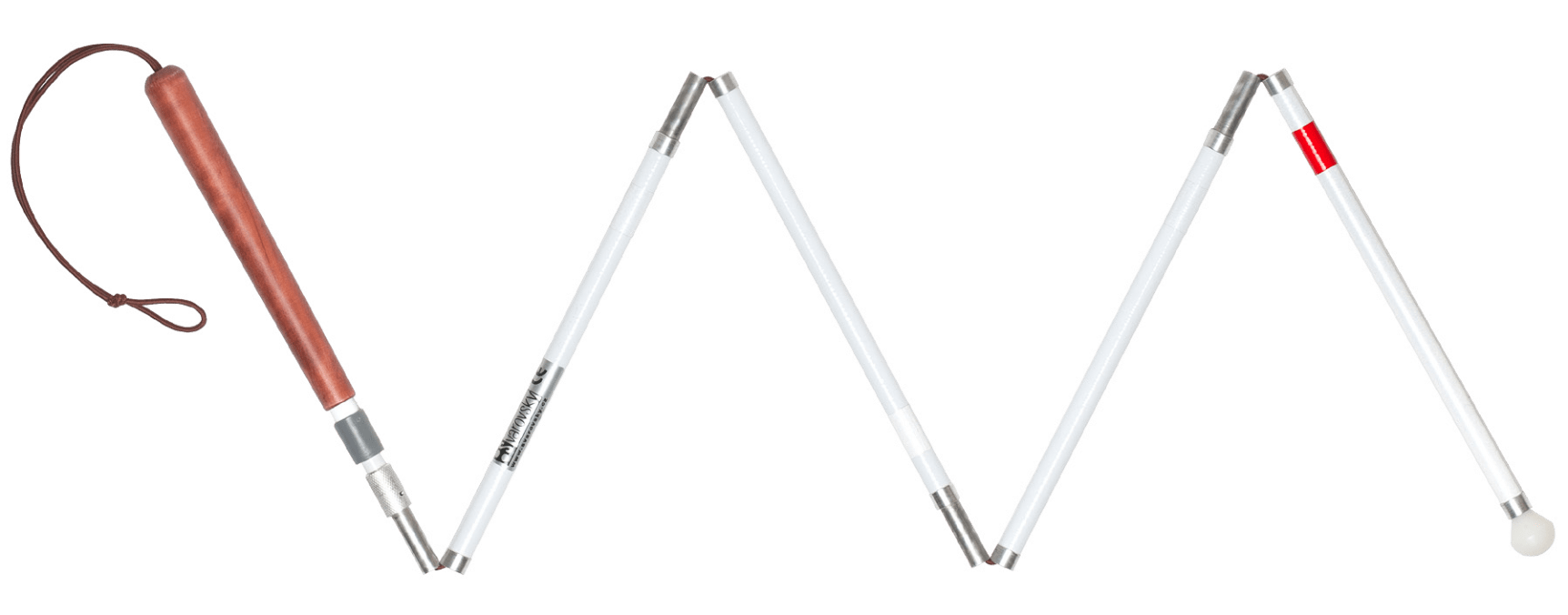

Folding cane

Telescopic cane

Combined cane (folding + telescopic)

Basic material

Aluminium alloy thin-walled tubes of high-strength aluminium alloy AlSiMgCu
Composite thin-walled tubes made by hand winding a fabric of glass, carbon or kevlar fibers bonded with epoxy resin
Injection thin-walled tubes made by injection molding of composite granulate containing glass or carbon microfibers in a polyamide matrix

Accessories

Handles for orientation canes

Standard (wooden)

Leather coated

Neopren coated

Bag

a) Cloth bag (for OrF5A, OrF5C, OrC5C/A, OrC6C/A, SiF4A, SiF7A) b) Leather sheath (for OrF5A, OrF5C, SiF7A, SiT7C, SuF4A)

Tips for orientation canes

Solid
Finger (pencil) Diameter 14 mm	Standard Diameter 25 mm	Ceramic Diameter 24 mm

Rotary
Small Diameter 27 mm	Middle Diameter 38 mm	Big Diameter 50 mm	Ceramic Diameter 24 mm
