Module java.desktop

Package javax.swing.text

Class JTextComponent

java.lang.Object

java.awt.Component

java.awt.Container

javax.swing.JComponent

javax.swing.text.JTextComponent

All Implemented Interfaces:

ImageObserver, MenuContainer, Serializable, Accessible, Scrollable

Direct Known Subclasses:

JEditorPane, JTextArea, JTextField

@JavaBean(defaultProperty="UI")
public abstract class JTextComponent
extends JComponent
implements Scrollable, Accessible

JTextComponent is the base class for swing text components. It tries to be compatible with the java.awt.TextComponent class where it can reasonably do so. Also provided are other services for additional flexibility (beyond the pluggable UI and bean support). You can find information on how to use the functionality this class provides in General Rules for Using Text Components, a section in The Java Tutorial.

Caret Changes

The caret is a pluggable object in swing text components. Notification of changes to the caret position and the selection are sent to implementations of the CaretListener interface that have been registered with the text component. The UI will install a default caret unless a customized caret has been set.
By default the caret tracks all the document changes performed on the Event Dispatching Thread and updates it's position accordingly if an insertion occurs before or at the caret position or a removal occurs before the caret position. DefaultCaret tries to make itself visible which may lead to scrolling of a text component within JScrollPane. The default caret behavior can be changed by the DefaultCaret.setUpdatePolicy(int) method.
Note: Non-editable text components also have a caret though it may not be painted.

Commands

Text components provide a number of commands that can be used to manipulate the component. This is essentially the way that the component expresses its capabilities. These are expressed in terms of the swing Action interface, using the TextAction implementation. The set of commands supported by the text component can be found with the getActions() method. These actions can be bound to key events, fired from buttons, etc.

Text Input

The text components support flexible and internationalized text input, using keymaps and the input method framework, while maintaining compatibility with the AWT listener model.

A Keymap lets an application bind key strokes to actions. In order to allow keymaps to be shared across multiple text components, they can use actions that extend TextAction. TextAction can determine which JTextComponent most recently has or had focus and therefore is the subject of the action (In the case that the ActionEvent sent to the action doesn't contain the target text component as its source).

The Input Method Framework lets text components interact with input methods, separate software components that preprocess events to let users enter thousands of different characters using keyboards with far fewer keys. JTextComponent is an active client of the framework, so it implements the preferred user interface for interacting with input methods. As a consequence, some key events do not reach the text component because they are handled by an input method, and some text input reaches the text component as committed text within an InputMethodEvent instead of as a key event. The complete text input is the combination of the characters in keyTyped key events and committed text in input method events.

The AWT listener model lets applications attach event listeners to components in order to bind events to actions. Swing encourages the use of keymaps instead of listeners, but maintains compatibility with listeners by giving the listeners a chance to steal an event by consuming it.

Keyboard event and input method events are handled in the following stages, with each stage capable of consuming the event:

Stages of keyboard and input method event handling

Stage	KeyEvent	InputMethodEvent
1.	input methods	(generated here)
2.	focus manager
3.	registered key listeners	registered input method listeners
4.		input method handling in JTextComponent
5.	keymap handling using the current keymap
6.	keyboard handling in JComponent (e.g. accelerators, component navigation, etc.)

To maintain compatibility with applications that listen to key events but are not aware of input method events, the input method handling in stage 4 provides a compatibility mode for components that do not process input method events. For these components, the committed text is converted to keyTyped key events and processed in the key event pipeline starting at stage 3 instead of in the input method event pipeline.

By default the component will create a keymap (named DEFAULT_KEYMAP) that is shared by all JTextComponent instances as the default keymap. Typically a look-and-feel implementation will install a different keymap that resolves to the default keymap for those bindings not found in the different keymap. The minimal bindings include:

• inserting content into the editor for the printable keys.
• removing content with the backspace and del keys.
• caret movement forward and backward

Model/View Split

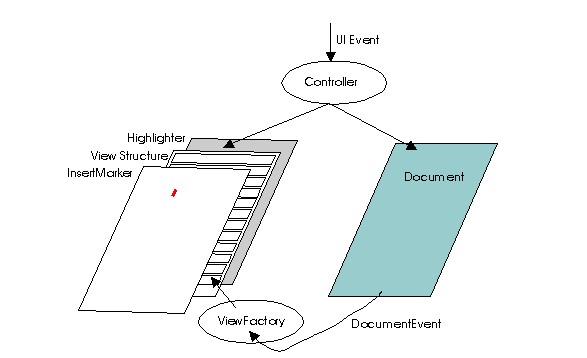

The text components have a model-view split. A text component pulls together the objects used to represent the model, view, and controller. The text document model may be shared by other views which act as observers of the model (e.g. a document may be shared by multiple components).

The model is defined by the Document interface. This is intended to provide a flexible text storage mechanism that tracks change during edits and can be extended to more sophisticated models. The model interfaces are meant to capture the capabilities of expression given by SGML, a system used to express a wide variety of content. Each modification to the document causes notification of the details of the change to be sent to all observers in the form of a DocumentEvent which allows the views to stay up to date with the model. This event is sent to observers that have implemented the DocumentListener interface and registered interest with the model being observed.

Location Information

The capability of determining the location of text in the view is provided. There are two methods, modelToView(int) and viewToModel(java.awt.Point) for determining this information.

Undo/Redo support

Support for an edit history mechanism is provided to allow undo/redo operations. The text component does not itself provide the history buffer by default, but does provide the UndoableEdit records that can be used in conjunction with a history buffer to provide the undo/redo support. The support is provided by the Document model, which allows one to attach UndoableEditListener implementations.

Thread Safety

The swing text components provide some support of thread safe operations. Because of the high level of configurability of the text components, it is possible to circumvent the protection provided. The protection primarily comes from the model, so the documentation of AbstractDocument describes the assumptions of the protection provided. The methods that are safe to call asynchronously are marked with comments.

Newlines

For a discussion on how newlines are handled, see DefaultEditorKit.

Printing support

Several print methods are provided for basic document printing. If more advanced printing is needed, use the getPrintable(java.text.MessageFormat, java.text.MessageFormat) method.

Warning: Serialized objects of this class will not be compatible with future Swing releases. The current serialization support is appropriate for short term storage or RMI between applications running the same version of Swing. As of 1.4, support for long term storage of all JavaBeans has been added to the java.beans package. Please see XMLEncoder.

See Also:

Document, DocumentEvent, DocumentListener, Caret, CaretEvent, CaretListener, TextUI, View, ViewFactory

Nested Class Summary

Nested Classes

Modifier and Type	Class	Description
class	JTextComponent.AccessibleJTextComponent	This class implements accessibility support for the JTextComponent class.
static class	JTextComponent.DropLocation	Represents a drop location for JTextComponents.
static class	JTextComponent.KeyBinding	Binding record for creating key bindings.

Nested classes/interfaces declared in class javax.swing.JComponent

JComponent.AccessibleJComponent

Nested classes/interfaces declared in class java.awt.Container

Container.AccessibleAWTContainer

Nested classes/interfaces declared in class java.awt.Component

Component.AccessibleAWTComponent, Component.BaselineResizeBehavior, Component.BltBufferStrategy, Component.FlipBufferStrategy

Field Summary

Fields

Modifier and Type	Field	Description
static String	DEFAULT_KEYMAP	The default keymap that will be shared by all JTextComponent instances unless they have had a different keymap set.
static String	FOCUS_ACCELERATOR_KEY	The bound property name for the focus accelerator.

Fields declared in class javax.swing.JComponent

listenerList, TOOL_TIP_TEXT_KEY, ui, UNDEFINED_CONDITION, WHEN_ANCESTOR_OF_FOCUSED_COMPONENT, WHEN_FOCUSED, WHEN_IN_FOCUSED_WINDOW

Fields declared in class java.awt.Component

accessibleContext, BOTTOM_ALIGNMENT, CENTER_ALIGNMENT, LEFT_ALIGNMENT, RIGHT_ALIGNMENT, TOP_ALIGNMENT

Fields declared in interface java.awt.image.ImageObserver

ABORT, ALLBITS, ERROR, FRAMEBITS, HEIGHT, PROPERTIES, SOMEBITS, WIDTH

Constructor Summary

Constructors

Constructor	Description
JTextComponent()	Creates a new JTextComponent.

Method Summary

Modifier and Type	Method	Description
void	addCaretListener(CaretListener listener)	Adds a caret listener for notification of any changes to the caret.
static Keymap	addKeymap(String nm, Keymap parent)	Adds a new keymap into the keymap hierarchy.
void	copy()	Transfers the currently selected range in the associated text model to the system clipboard, leaving the contents in the text model.
void	cut()	Transfers the currently selected range in the associated text model to the system clipboard, removing the contents from the model.
protected void	fireCaretUpdate(CaretEvent e)	Notifies all listeners that have registered interest for notification on this event type.
AccessibleContext	getAccessibleContext()	Gets the AccessibleContext associated with this JTextComponent.
Action[]	getActions()	Fetches the command list for the editor.
Caret	getCaret()	Fetches the caret that allows text-oriented navigation over the view.
Color	getCaretColor()	Fetches the current color used to render the caret.
CaretListener[]	getCaretListeners()	Returns an array of all the caret listeners registered on this text component.
int	getCaretPosition()	Returns the position of the text insertion caret for the text component.
Color	getDisabledTextColor()	Fetches the current color used to render the disabled text.
Document	getDocument()	Fetches the model associated with the editor.
boolean	getDragEnabled()	Returns whether or not automatic drag handling is enabled.
JTextComponent.DropLocation	getDropLocation()	Returns the location that this component should visually indicate as the drop location during a DnD operation over the component, or null if no location is to currently be shown.
DropMode	getDropMode()	Returns the drop mode for this component.
char	getFocusAccelerator()	Returns the key accelerator that will cause the receiving text component to get the focus.
Highlighter	getHighlighter()	Fetches the object responsible for making highlights.
InputMethodRequests	getInputMethodRequests()	Gets the input method request handler which supports requests from input methods for this component.
Keymap	getKeymap()	Fetches the keymap currently active in this text component.
static Keymap	getKeymap(String nm)	Fetches a named keymap previously added to the document.
Insets	getMargin()	Returns the margin between the text component's border and its text.
NavigationFilter	getNavigationFilter()	Returns the NavigationFilter.
Dimension	getPreferredScrollableViewportSize()	Returns the preferred size of the viewport for a view component.
Printable	getPrintable(MessageFormat headerFormat, MessageFormat footerFormat)	Returns a Printable to use for printing the content of this JTextComponent.
int	getScrollableBlockIncrement(Rectangle visibleRect, int orientation, int direction)	Components that display logical rows or columns should compute the scroll increment that will completely expose one block of rows or columns, depending on the value of orientation.
boolean	getScrollableTracksViewportHeight()	Returns true if a viewport should always force the height of this Scrollable to match the height of the viewport.
boolean	getScrollableTracksViewportWidth()	Returns true if a viewport should always force the width of this Scrollable to match the width of the viewport.
int	getScrollableUnitIncrement(Rectangle visibleRect, int orientation, int direction)	Components that display logical rows or columns should compute the scroll increment that will completely expose one new row or column, depending on the value of orientation.
String	getSelectedText()	Returns the selected text contained in this TextComponent.
Color	getSelectedTextColor()	Fetches the current color used to render the selected text.
Color	getSelectionColor()	Fetches the current color used to render the selection.
int	getSelectionEnd()	Returns the selected text's end position.
int	getSelectionStart()	Returns the selected text's start position.
String	getText()	Returns the text contained in this TextComponent.
String	getText(int offs, int len)	Fetches a portion of the text represented by the component.
String	getToolTipText(MouseEvent event)	Returns the string to be used as the tooltip for event.
TextUI	getUI()	Fetches the user-interface factory for this text-oriented editor.
boolean	isEditable()	Returns the boolean indicating whether this TextComponent is editable or not.
static void	loadKeymap(Keymap map, JTextComponent.KeyBinding[] bindings, Action[] actions)	Loads a keymap with a bunch of bindings.
Rectangle	modelToView(int pos)	Deprecated. replaced by modelToView2D(int)
Rectangle2D	modelToView2D(int pos)	Converts the given location in the model to a place in the view coordinate system.
void	moveCaretPosition(int pos)	Moves the caret to a new position, leaving behind a mark defined by the last time setCaretPosition was called.
protected String	paramString()	Returns a string representation of this JTextComponent.
void	paste()	Transfers the contents of the system clipboard into the associated text model.
boolean	print()	A convenience print method that displays a print dialog, and then prints this JTextComponent in interactive mode with no header or footer text.
boolean	print(MessageFormat headerFormat, MessageFormat footerFormat)	A convenience print method that displays a print dialog, and then prints this JTextComponent in interactive mode with the specified header and footer text.
boolean	print(MessageFormat headerFormat, MessageFormat footerFormat, boolean showPrintDialog, PrintService service, PrintRequestAttributeSet attributes, boolean interactive)	Prints the content of this JTextComponent.
void	read(Reader in, Object desc)	Initializes from a stream.
void	removeCaretListener(CaretListener listener)	Removes a caret listener.
static Keymap	removeKeymap(String nm)	Removes a named keymap previously added to the document.
void	replaceSelection(String content)	Replaces the currently selected content with new content represented by the given string.
protected void	restoreComposedText()	Restores composed text previously saved by saveComposedText.
protected boolean	saveComposedText(int pos)	Saves composed text around the specified position.
void	select(int selectionStart, int selectionEnd)	Selects the text between the specified start and end positions.
void	selectAll()	Selects all the text in the TextComponent.
void	setCaret(Caret c)	Sets the caret to be used.
void	setCaretColor(Color c)	Sets the current color used to render the caret.
void	setCaretPosition(int position)	Sets the position of the text insertion caret for the TextComponent.
void	setDisabledTextColor(Color c)	Sets the current color used to render the disabled text.
void	setDocument(Document doc)	Associates the editor with a text document.
void	setDragEnabled(boolean b)	Turns on or off automatic drag handling.
void	setDropMode(DropMode dropMode)	Sets the drop mode for this component.
void	setEditable(boolean b)	Sets the specified boolean to indicate whether or not this TextComponent should be editable.
void	setFocusAccelerator(char aKey)	Sets the key accelerator that will cause the receiving text component to get the focus.
void	setHighlighter(Highlighter h)	Sets the highlighter to be used.
void	setKeymap(Keymap map)	Sets the keymap to use for binding events to actions.
void	setMargin(Insets m)	Sets margin space between the text component's border and its text.
void	setNavigationFilter(NavigationFilter filter)	Sets the NavigationFilter.
void	setSelectedTextColor(Color c)	Sets the current color used to render the selected text.
void	setSelectionColor(Color c)	Sets the current color used to render the selection.
void	setSelectionEnd(int selectionEnd)	Sets the selection end to the specified position.
void	setSelectionStart(int selectionStart)	Sets the selection start to the specified position.
void	setText(String t)	Sets the text of this TextComponent to the specified text.
void	setUI(TextUI ui)	Sets the user-interface factory for this text-oriented editor.
void	updateUI()	Reloads the pluggable UI.
int	viewToModel(Point pt)	Deprecated. replaced by viewToModel2D(Point2D)
int	viewToModel2D(Point2D pt)	Converts the given place in the view coordinate system to the nearest representative location in the model.
void	write(Writer out)	Stores the contents of the model into the given stream.

Methods declared in class javax.swing.JComponent

addAncestorListener, addNotify, addVetoableChangeListener, computeVisibleRect, contains, createToolTip, disable, enable, firePropertyChange, firePropertyChange, fireVetoableChange, getActionForKeyStroke, getActionMap, getAlignmentX, getAlignmentY, getAncestorListeners, getAutoscrolls, getBaseline, getBaselineResizeBehavior, getBorder, getBounds, getClientProperty, getComponentGraphics, getComponentPopupMenu, getConditionForKeyStroke, getDebugGraphicsOptions, getDefaultLocale, getFontMetrics, getGraphics, getHeight, getInheritsPopupMenu, getInputMap, getInputMap, getInputVerifier, getInsets, getInsets, getListeners, getLocation, getMaximumSize, getMinimumSize, getNextFocusableComponent, getPopupLocation, getPreferredSize, getRegisteredKeyStrokes, getRootPane, getSize, getToolTipLocation, getToolTipText, getTopLevelAncestor, getTransferHandler, getUIClassID, getVerifyInputWhenFocusTarget, getVetoableChangeListeners, getVisibleRect, getWidth, getX, getY, grabFocus, hide, isDoubleBuffered, isLightweightComponent, isManagingFocus, isOpaque, isOptimizedDrawingEnabled, isPaintingForPrint, isPaintingOrigin, isPaintingTile, isRequestFocusEnabled, isValidateRoot, paint, paintBorder, paintChildren, paintComponent, paintImmediately, paintImmediately, print, printAll, printBorder, printChildren, printComponent, processComponentKeyEvent, processKeyBinding, processKeyEvent, processMouseEvent, processMouseMotionEvent, putClientProperty, registerKeyboardAction, registerKeyboardAction, removeAncestorListener, removeNotify, removeVetoableChangeListener, repaint, repaint, requestDefaultFocus, requestFocus, requestFocus, requestFocusInWindow, requestFocusInWindow, resetKeyboardActions, reshape, revalidate, scrollRectToVisible, setActionMap, setAlignmentX, setAlignmentY, setAutoscrolls, setBackground, setBorder,
